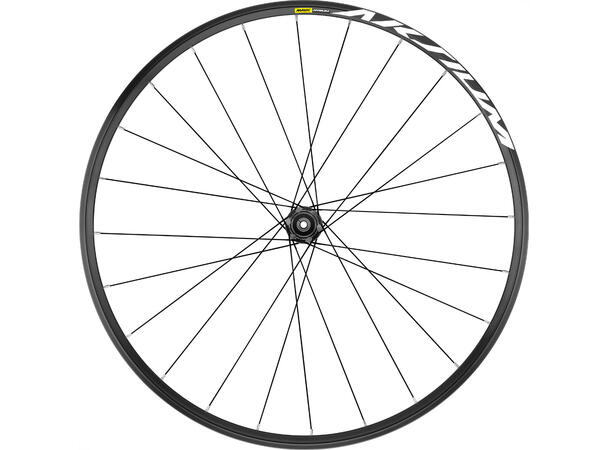

AKSIUM DISC (CL
The reliable everyday performance of Aksium, engineered for the special demands of disc brakes.
KEY BENEFITS
Powerful, reliable disc brakes for added confidence and control.
24 spokes front and rear for optimized brake torque distribution.
Disc-brake optimized rim profile.
Disc-friendly spoke geometry and lacing pattern.
Smooth, efficient ride quality.
Wider 17mm (inner width) rims allow tires up to 32mm.
High quality QRM cartridge bearings.
Straight pull round spokes are stronger than J-bend options.
Aksium is a great choice for everyday road riding.
With a smart balance of high-quality materials and durable construction, it offers aspiring road riders the clear performance benefits of a high-quality wheelset.
This Aksium Disc model includes special features aimed at the unique demands of disc brake road bikes.
It uses straight-pull spokes for added stiffness and strength, and we also increased the spoke count to 24 on both front and rear wheels.
With a 17mm internal width, these rims are compatible with tires up to 32mm, making them versatile, comfortable and ideal for challenging road conditions.
The disc-specific hubs feature super strong QRM bearings that provide low friction and long-term durability.
The Aksium Disc is made for standard quick release and is compatible Center Lock brake rotors.
SPECIFICATIONS
Compatibility
Front axle: 12x100 thru axle, easily convertible to quick release with included adapters. Not compatible with 15mm through axles.
Rear axle: 12mm thru axle, convertible to Quick Release with included adapters
Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies
Weight
Pair without tyre: 1905 grams
Front without tyre: 870 grams
Rear without tyre: 1035 grams
Hubs
Front: Quick release and 12x100 through axle compatible
Auto adjust sealed cartridge bearings (QRM Auto), front and rear
Rear: Quick Release, 12x142 and 12x135 compatible
Freewheel: Instant Drive 360
Front and rear bodies: aluminum
Axle material: aluminum
Intended Use
Max. Pressure: 23mm 8.7 bars - 125 psi, 25/28mm 7.7 bars - 110 psi
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
Recommended tyre sizes: 25 to 32 mm
Rims
ETRTO size: 622x17C
Drilling: traditional
Height: 21 mm
Internal width: 17 mm
Disc brake specific profile
Valve hole diameter: 6.5 mm
Joint: pinned
Material: S6000 Aluminum
Tyre: clincher
Spokes
Nipples: steel, ABS
Material: steel
Lacing: front and rear crossed 2
Count: 24 front and rear
Shape: straight pull, round
Versions
Disc standard : 6 Bolts or Center Lock(R)
Color: Black only
DELIVERED WITH
Rear QR adapters for Instant Drive 360
Front QR adapters
Rim tape
User guide
