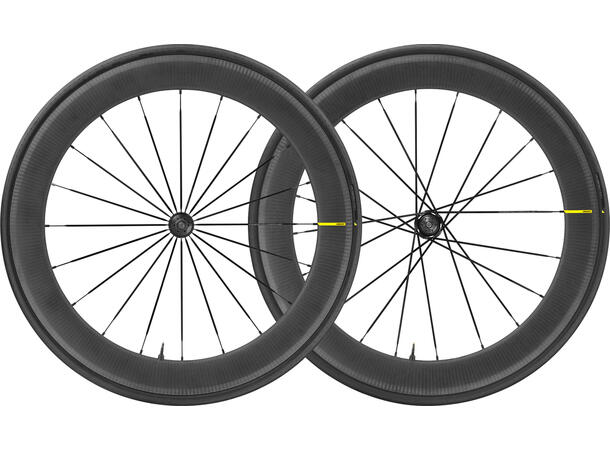

Ellipse Pro Carbon UST
Developed with top speedsters in the Red Hook Crit series, this carbon wheel is engineered to be
aerodynamic, durable and flat-out fast for criterium or track racing
KEY BENEFITS
Aerodynamic and stiff for speed and acceleration.
64mm deep full carbon NACA rim profile.
26mm wide, optimized for 25mm tires for low drag and high crosswind stability.
20 flat straight pull spokes, laced 3x, for high lateral stiffness.
Fast and efficient on straights, more control when cornering.
UST eliminates tube friction for less rolling resistance.
UST lets you ride with lower tire pressures for improved grip in the corners.
11-Storm tire compound delivers the perfect balance between rolling efficiency and grip.
Easy to set up and maintain for daily training or race use.
Simple tubeless tire set up and high puncture protection.
Flip-flop rear hub lets you use 2 cogs on the same wheel for more versatility.
This is the secret weapon for fixed gear racers. When these speed demons are hammering the streets in ultra-fast, ultra-technical crits like the famous Red Hook series, they demand wheels that deliver speed, reliability, and even more speed.
SPECIFICATIONS
Compatibility
Rear axle: for fixing nuts only (included), M9x1 thread
Front axle: for fixing nuts only (included), M9x1 thread
Freewheel: fixed cog only, flip-flop hub (one cog possible on each hub side). Cog thread: 1,37x24TPI. Lock ring thread: left thread M33x1
Weight
Pair without tyre: 1815 grams
Front without tyre: 865 grams
Rear without tyre: 950 grams
Hubs
Front and rear bodies: aluminum
Axle material: steel
Fixed cog
Adjustable sealed cartridge bearings (QRM+)
Intended Use
Max. Pressure: see indication on wheel and tyre. If they differ, use the lowest of the 2
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
ASTM CATEGORY 1 : road only
Recommended tyre sizes: 25 to 32 mm
Rims
ETRTO size: 622x19TC Road
Height: 64mm
Use with Mavic Tubeless Tape
Material: 3K carbon fibers
Brake track: carbon with iTgMAX technology
Drilling: traditional
Internal width: 19 mm
Valve hole diameter: 6.5 mm
Tyre: UST Tubeless and tubetype
Spokes
Shape: straight pull, aero, double butted
Nipples: steel, ABS
Material: steel
Lacing: front radial, rear crossed 2
Count: 20 front and rear
Tyre
Front and Rear Tread: 11 Storm single compound
Yksion Pro UST
UST Tubeless Ready
Dimension: 25-622 (700x25c)
Breaker: Polyamide, from bead to bead
Casing: 127 TPI
Versions
Color: Black only
DELIVERED WITH
Tyre sealant syringe
Mavic tyre sealant (rear wheel)
Tubeless rim tape
Multifonction adjustment wrench
UST valve and accessories
User guide
