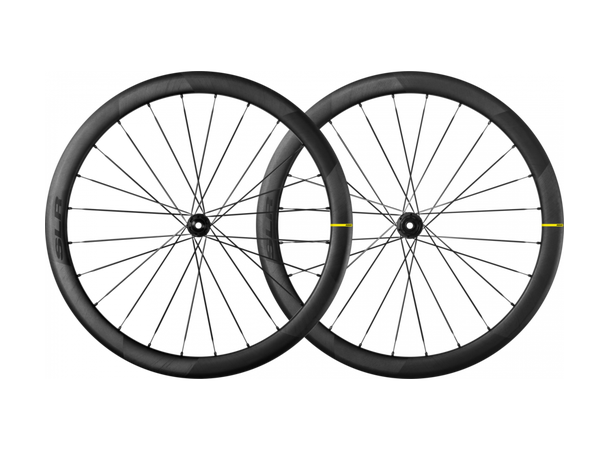

With lighter 45mm rims featuring our new UD² finish, this carbon wheelset is the fastest, stiffest and lightest all-rounder for road bikes with disc brakes

KEY BENEFITS

Accelerate and climb faster, hold higher speed
New UD² rim laminate and Fore Carbon spoke attachment save 55g and eliminate rim tape (another 30g saved per wheel) 45mm deep, 26mm wide NACA rim profile optimized for disc brakes Patented lightweight aero spokes

Stiffer wheel for improved power transfer
Fore Carbon technology keeps the rim upper bridge solid and makes the rim stiffer New Infinity hub plaform: stiff axle, durable bearings and new hub design optimize lacing and spokes tension ID360 freewheel technology for instant power transfer

Improved UST Road delivers more speed, comfort and control in an easy to use tubeless system
No tubes means less friction, better efficiency and grip, and a reduced risk of punctures New rim bed shape makes it easier to mount and change tires Fore Carbon drilling technology doesn't require the use of rim tape

This all-new carbon wheelset is a great choice for road riders aiming to be fast and efficient in all types of riding and racing situations. Not only does the 45mm airfoil rim slice through the wind with minimal drag, but it’s also amongst the lightest in its category. This season, the external carbon layer features our new UD² construction for a distinctive look and an even lighter rim laminate, saving another 15g per rims.

A new rim laminate coupled with our exclusive Fore Carbon technology leaves the upper rim bridge intact and reinforces the rim only where needed, saving 40g per rim. The spokes attach to the rim without any need to drill the upper rim bed, so no rim tape is required. That means more weight savings (30g) and less hassle when it comes to set up or repair tubeless tyres. The new shape of the rim bed makes it easier than ever to mount and remove tires. UST Tubeless setup means no tube, so no friction, and more air volume means a smoother ride. The result is a faster ride with super low rolling resistance. At last, our patented elliptical spokes save another 5 watts.

Our new Infinity hub platform optimizes the spoke lacing for efficient power transfer through highly controlled spoke tension. The Instant Drive 360 freewheel with automatic bearing preload adjustment (QRM Auto) provides fast engagement, high stiffness and added durability. It's available for Shimano and SRAM XD-Road driver bodies and can convert to Campagnolo with an optional driver body. It's compatible with a 12x100 axle up front, and 12x142 rear, and converts to Quick Release with supplied adapters. For Center Lock disc rotors only.
These wheels are designed, engineered and patented by Mavic in Annecy, France, and are 100% handmade in our European carbon factory.

SPECIFICATIONS

Weight : 1440 grams (Pair)
Weight : 655 grams (Front)
Weight : 785 grams (Rear)

Rims
Material: 100% carbon fiber
Height: 45 mm
Disc brake specific profile
Tire: UST Tubeless and tubetype
Internal width: 19 mm
ETRTO size: 622x19TC Road
Fore Carbon
UST

Spokes
Material: steel
Shape: straight pull, elliptical aero, double butted (patented)
Nipples: Fore integrated aluminum
Count: 24 front and rear
Lacing: front and rear crossed 2, contactless

Hubs
Front and rear bodies: aluminum
Axle material: aluminum
Front: Quick release and 12x100 through axle compatible
Rear: Quick Release, 12x142 and 12x135 compatible
Infinity Hub
Instant Drive 360
QRM Auto

Versions
Disc standard: Center Lock (R) only
Freewheel: Shimano/Sram or XD-Road

Compatibility
Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies
Rear axle: 12mm thru axle, convertible to Quick Release with optional adapters

Compatible Adapters and freewheel bodies
12 to 9mm front adapter for quick release (LV2680300)
12 to 9mm rear adapter for quick release ([LV2510800]
12x135 rear axle adapters (LV2510900)
ID360 Shimano / Sram Light freewheel body (LV3850100)
ID360 Campagnolo freewheel body (LV3440100)
ID360 XD-R freewheel body (LV2580100)
ID360 Shimano / Sram freewheel body ([LV3430100] - Delivered on the wheel)

Intended use
ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesnn't exceed 120kg, bike included
Recommended tyre sizes: 25 to 32 mm
Max. Pressure: see indication on wheel and tyre. If they differ, use the lowest of the 2

Delivered with
UST valve and accessories
User guide
