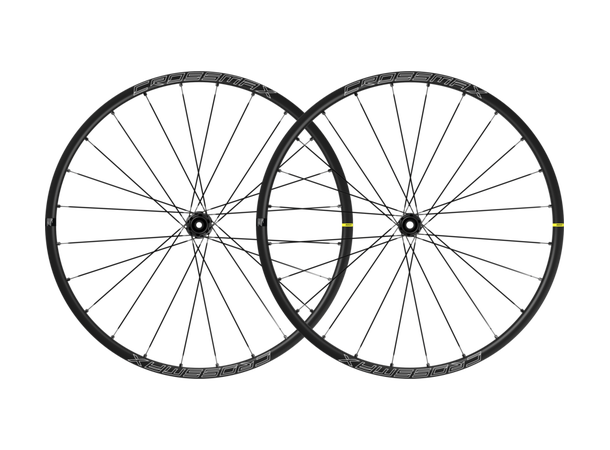

CROSSMAX SL 29
The Crossmax SL is designed to be our most advanced alloy cross-country wheel ever. For anyone looking to burn up the XC course, this lightweight, efficient 29” wheel offers the world’s easiest tubeless system at an attainable price. .
KEY BENEFITS
Faster accelerating and climbing capabilities
Fore technology sealed rim design minimizes weight and increases strength. Eliminating rim tape saves 30g per rim. Ultra-reliable ID360 freewheel system for instant engagement.
Increased traction and durability
25mm wide hookless rim profile optimized for lower tire pressures, resulting in improved grip in all conditions. Optimized for modern XC tubeless tires from 2.1 to 2.30". Black Shield treatment protects rims against impacts and scratches.
Most user-friendly tubeless system
Fore technology fully sealed rim with no rim tape makes it easy to mount and change tubeless tires. Leaving the upper rim bridge intact boosts the stiffness and durability of the rim.
TThe name Crossmax has a long history in the world of XC riding and racing, and the new Crossmax SL lives up to that legacy. It offers many of our proven Mavic technologies at an attainable price. Weighing just 1700g, it’s a true all-rounder and the best alloy XC wheel in its category.
The rims are made with our patented Fore technology featuring a fully sealed upper rim bridge that eliminates the need for rim tape. That saves 30 grams per wheel, not to mention the hassle of using tape to set up tubeless tires. The rim has a 25mm internal width with a durable hookless profile, and our Black Shield technology gives them a distinctive, modern look that protects against scratches and abrasions.
We use 24 straight-pull spokes (same spoke length throughout) for a strong connection between the rim and hub and a perfect balance between efficiency and durability. Special machining on the hub ensures that the spoke head is secured but can still travel in the slot. This allows the wheel to absorb impacts from trail obstacles. Our Instant Drive 360 freewheel coupled with QRM Auto bearing technology provides fast engagement and added durability. The Crossmax SL 29 is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. It’s available with 6-bolt or center lock brake rotors in 29” only and is compatible with a 15x110 front axle and 12x148 rear. It comes with valves, replacement spokes and accessories.
SPECIFICATIONS
Rims
Material: Maxtal
Material: S6000 Aluminum
Tire: UST Tubeless and tubetype
Internal width: 25 mm
ETRTO size 29": 622x25TSS
Hookless profile
Black Shield treatment (protects your rim against impacts and scratches)
Asymmetrical rim design
Fore
SUP
Spokes
Material: steel
Shape: straight pull, flat, double butted
Nipples: Fore integrated aluminum
Count: 24 front and rear
Lacing: front and rear crossed 2, contactless
Hubs
Hub available with 6-bolt or center lock (R) brake rotors
Axles: Front 15X110 Boost ; Rear 12X148 Boost
Infinity Hub
Instant Drive 360
Versions
Disc standard : 6 Bolts or Center Lock (R)
Hub width : Boost only (front 110, rear 148)
Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline
Compatibility
Freewheel: Shimano HG9, XD or Micro Spline
Rear axle: 12x148 Boost thru axle
Front axle: 15x110 Boost thru axle
Compatible Adapters and freewheel bodies
Boost : Torque Caps (LV2374400)
ID360 Shimano HG9 alloy freewheel body (LV3780100)
ID360 Shimano Micro Spline alloy freewheel body (LV3990100)
ID360 Sram XD freewheel body (LV3740100)
Intended use
ASTM CATEGORY 3 : CROSS COUNTRY
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesnn't exceed 120kg, bike included
Recommended tyre sizes: 50mm to 76mm (2.0" to 3.0")
Delivered with
UST valve and accessories
Multifonction adjustment wrench (delivered with rear wheel)
2 replacement spokes with each wheel
Fore adjustment wrench
